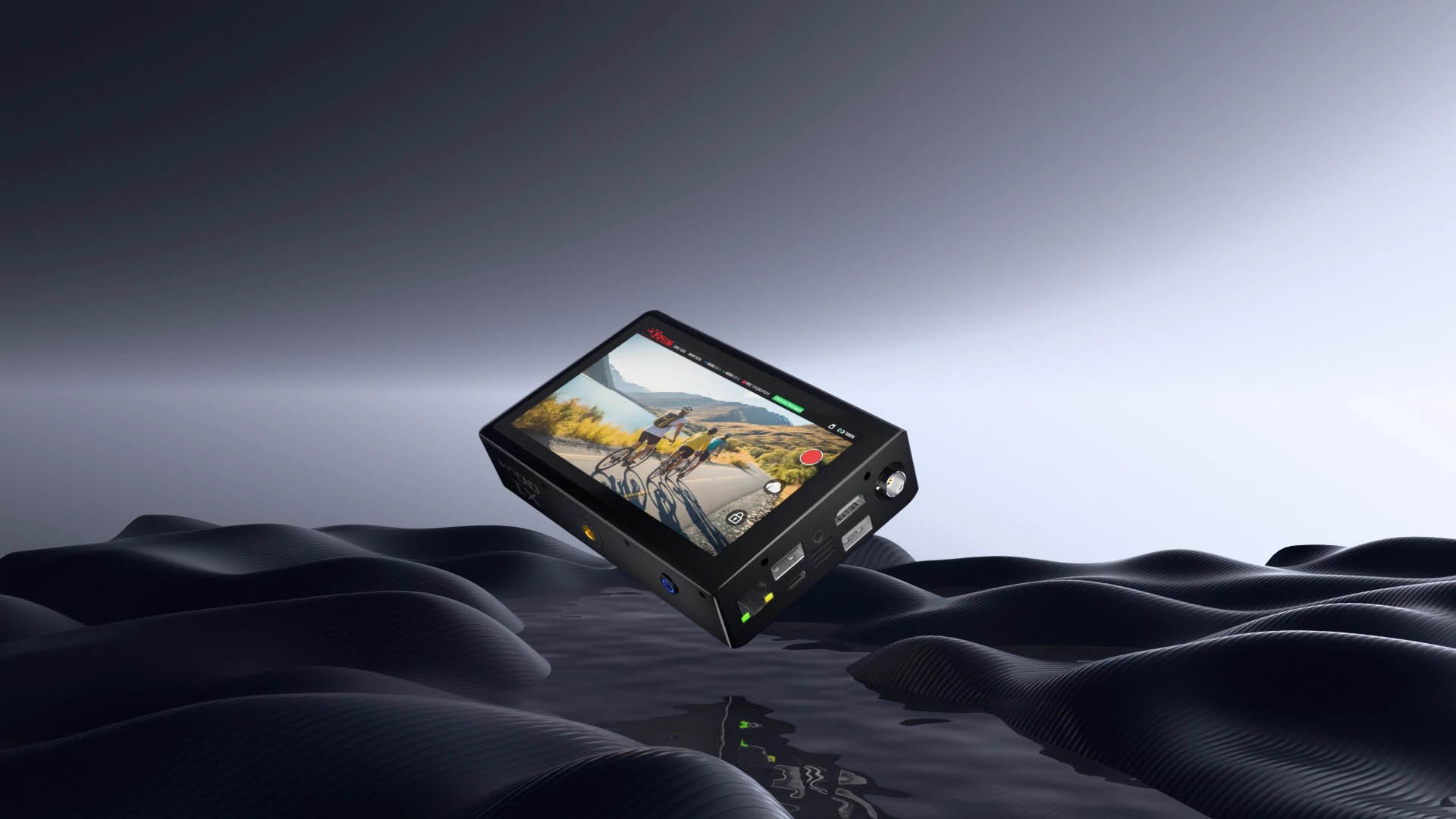

The TKDS MEDIA E1000 is a portable and powerful H.265 SDI/HDMI 4G bonding encoder designed to ensure reliable and smooth outdoor live streaming. It includes a built‑in 5.5” display for easy operation and real‑time monitoring of video sources and system status. It supports up to 7 network bonding options for robust connectivity. We provide a free bonding platform that you can deploy on your own server or on‑premise, along with the TKDS MEDIA Manager (for Linux server) and optional bonding hardware. This setup allows for easy registration and management of all your TKDS MEDIA products.
The E1000 is equipped with a single HDMI 2.0 port, capable of supporting video encoding up to 3840×2160p30. For 3G‑SDI inputs, it supports up to 1920×1080p60. The device also offers both H.264 and H.265 encoding options, ensuring superior image quality at lower bitrate.

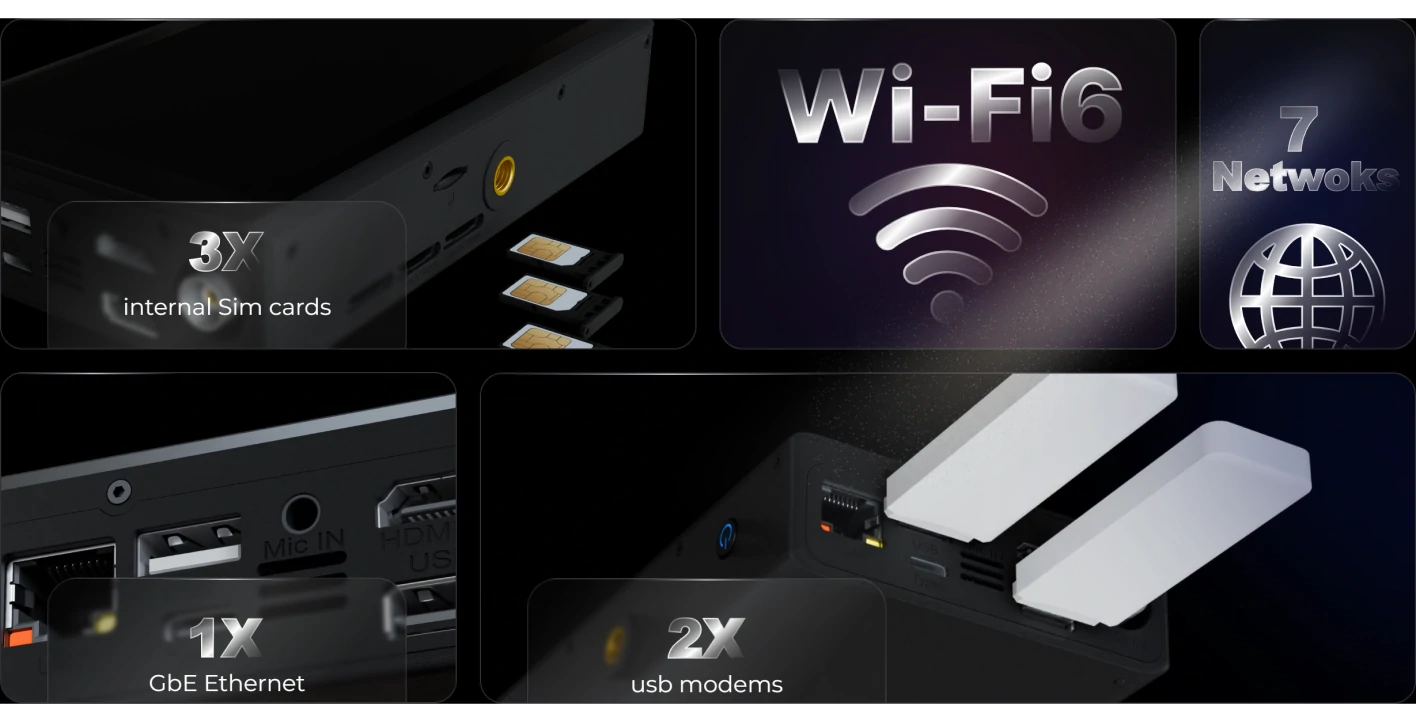

E1000 allows for connections and bonding of 7 networks: 3× internal SIM cards, 1× Wi‑Fi 6, 1× GbE Ethernet and 2× USB modems. Six SIM‑card slots (two cards per slot) automatically switch to a backup card when one runs out of data—making the E1000 your ideal companion for mobile or outdoor live streaming in challenging network conditions.

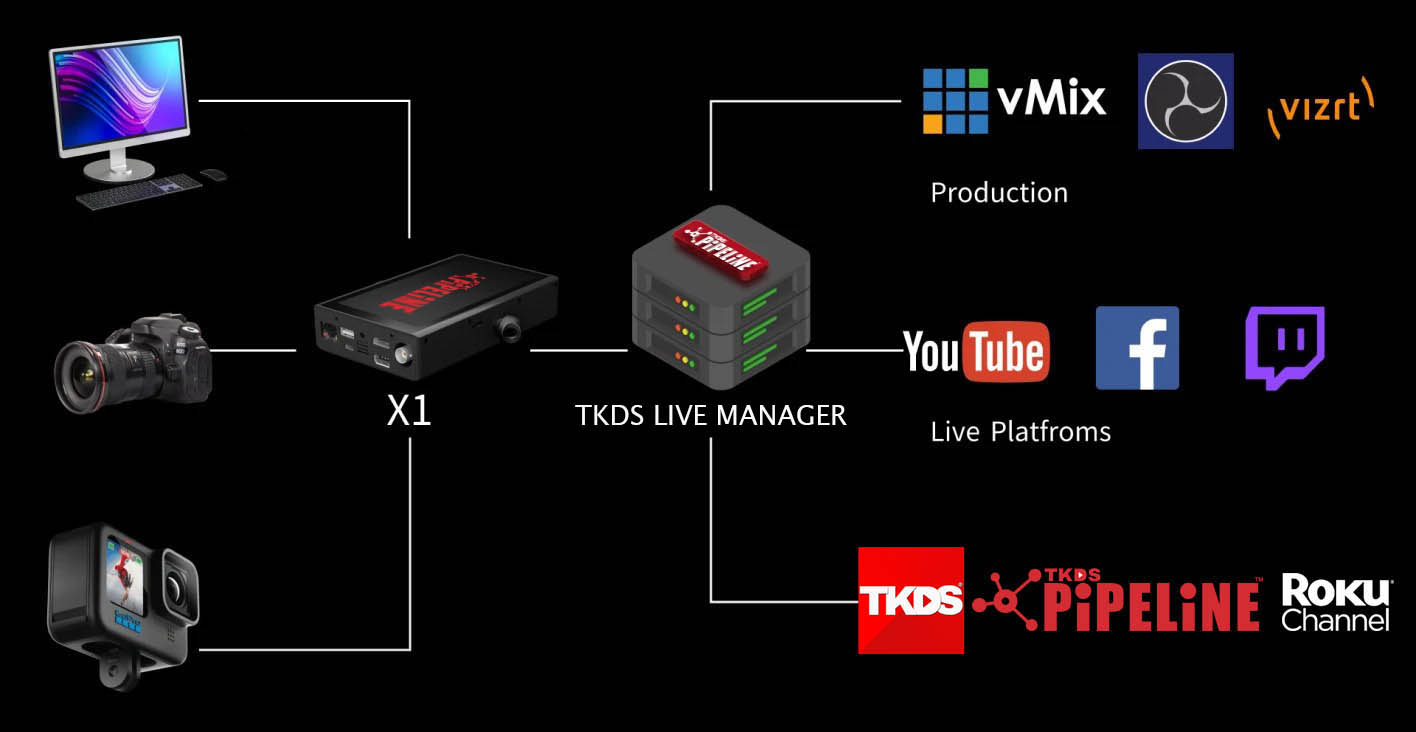

Built on our self‑developed technology, the E1000 ensures stable bonding data transmission even under poor network conditions. Our free bonding platform lets you deploy it on your cloud‑based or on‑premise server, meeting high‑security requirements. You have two options for the bonding server:

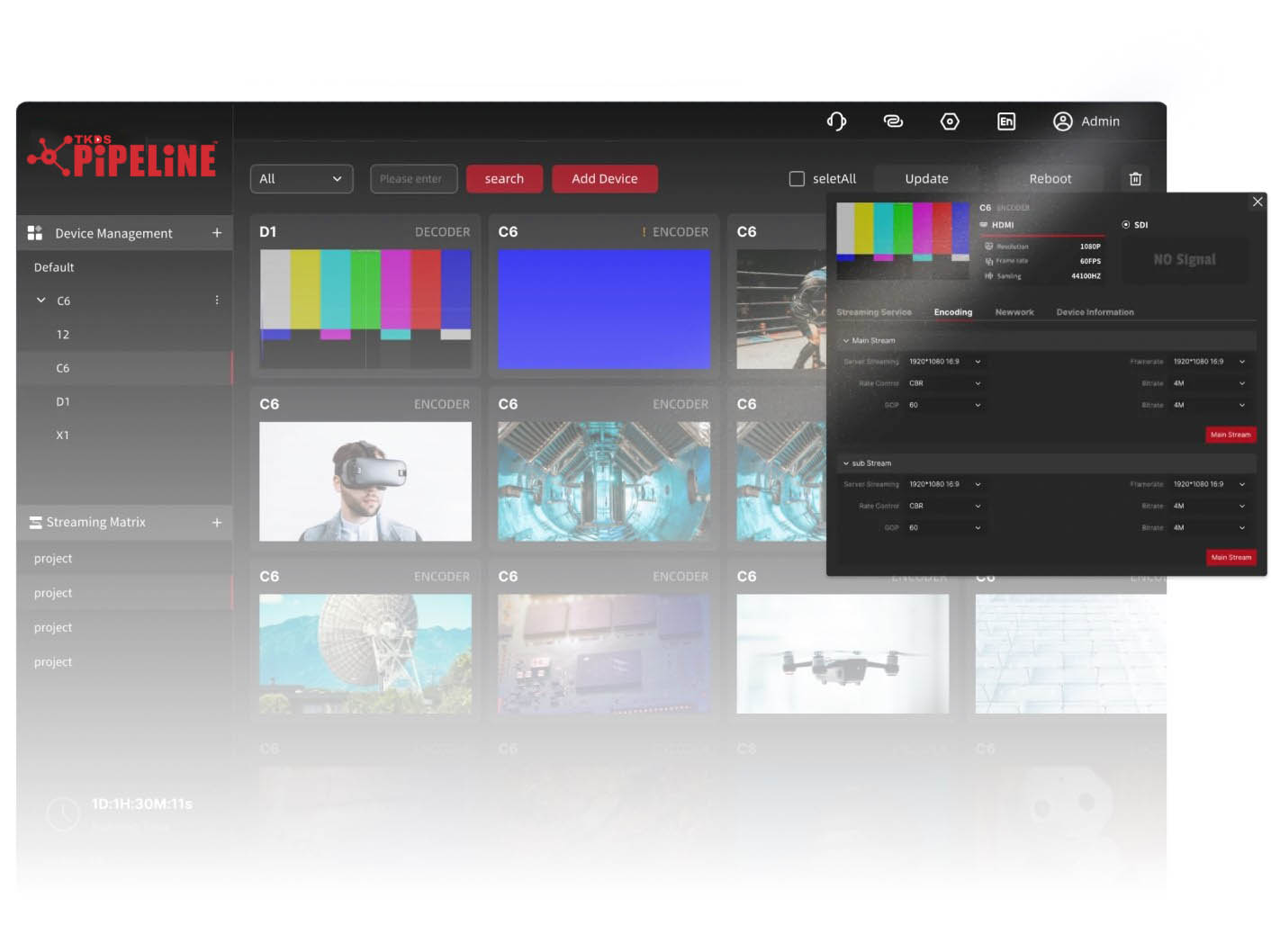

A software solution with bonding and remote‑management features, enabling you to monitor product status and perform remote firmware updates.
Supports output protocols such as SRT, NDI HX2, RTSP, RTMP, RTMPS and TS over UDP.

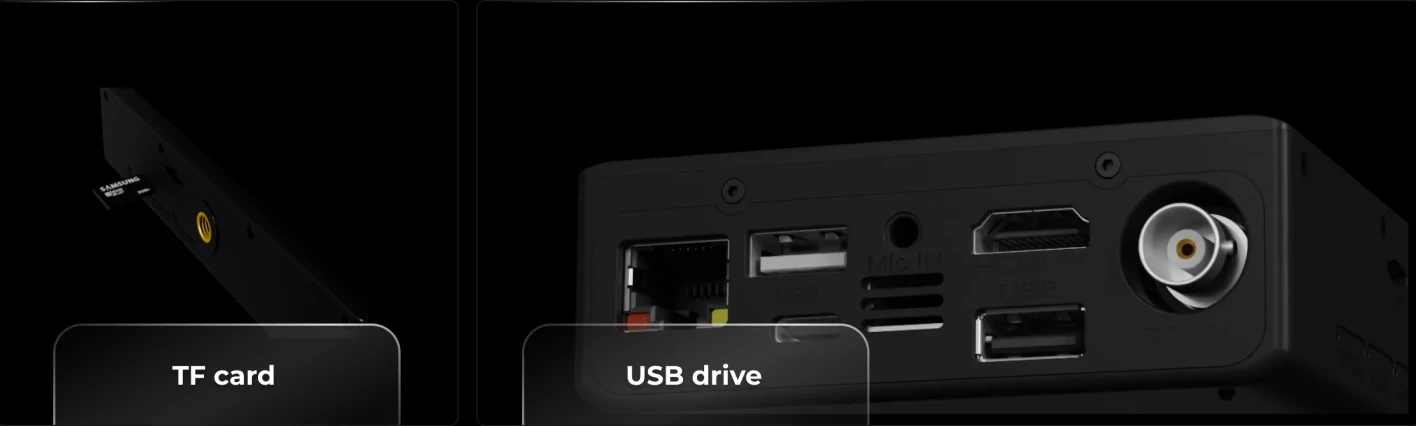

The E1000 supports local recording to a TF card or an external USB drive, providing backup storage for your real‑time streaming content.

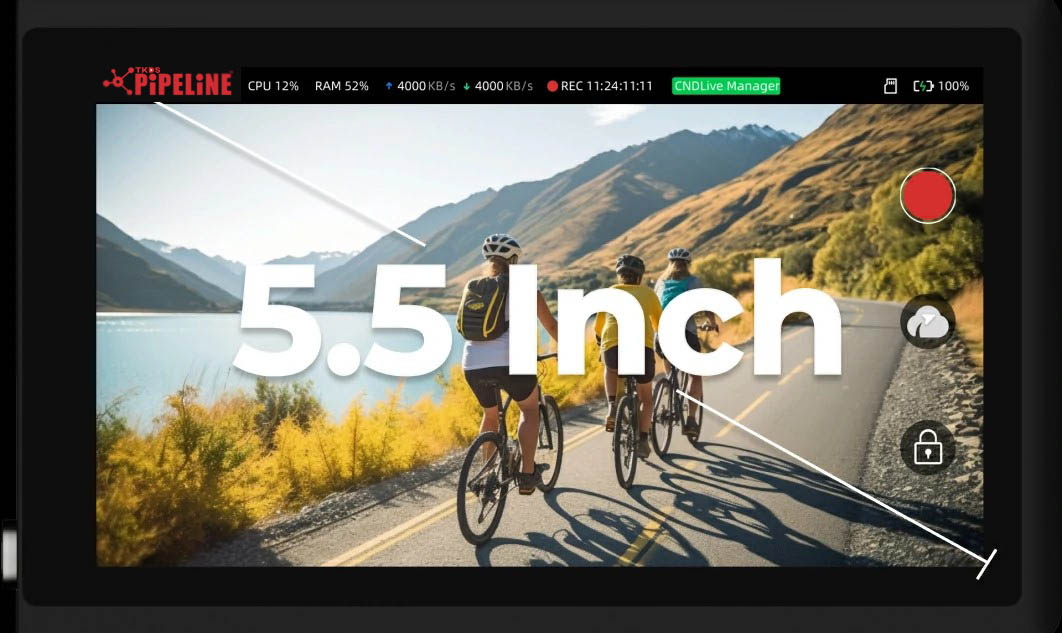

The E1000 features a built‑in 5.5‑inch LCD touchscreen for a seamless streaming experience. Preview video without accessing a backend webpage and start or stop streaming/recording with a single tap. Configure the device and monitor its status effortlessly.

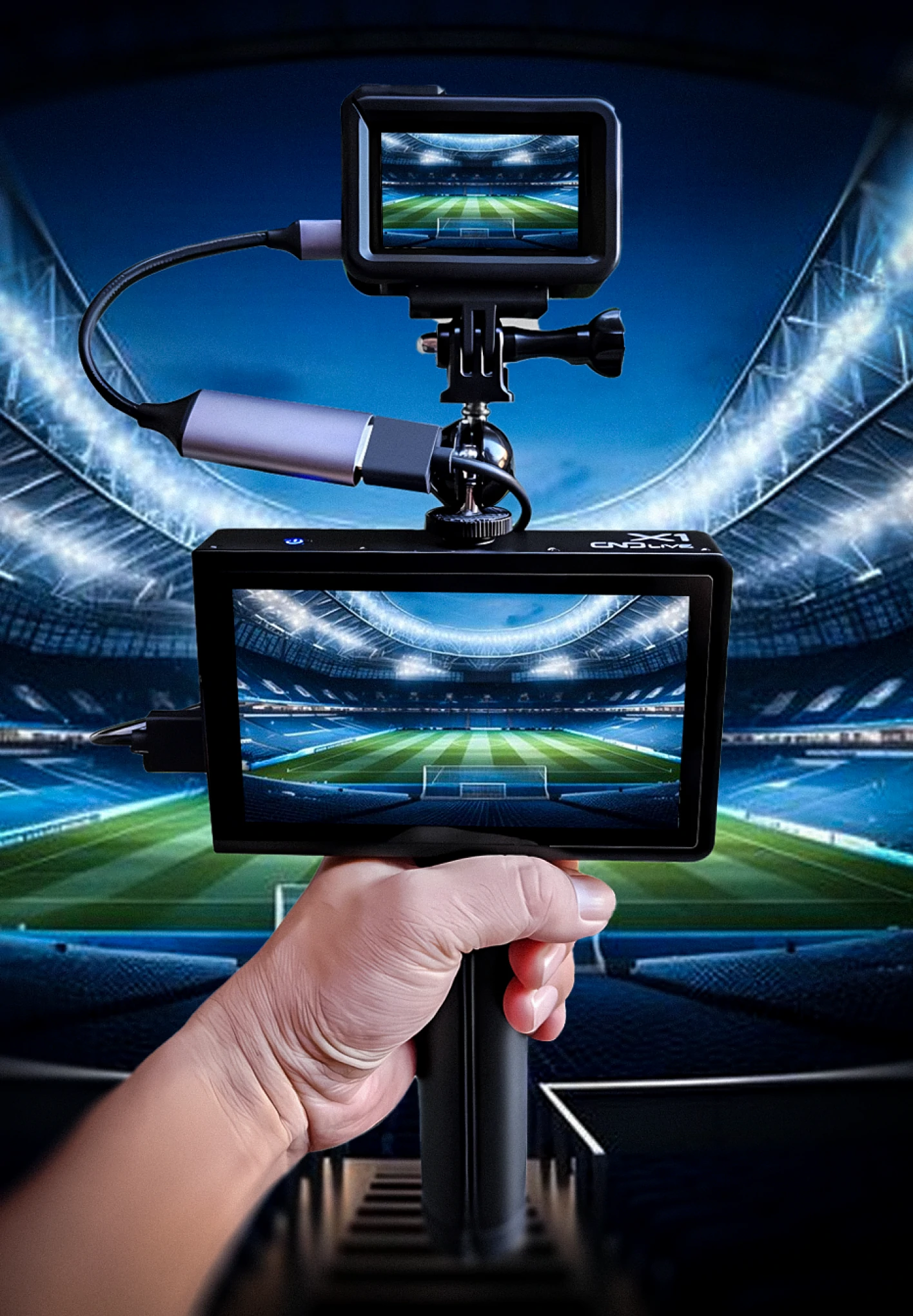

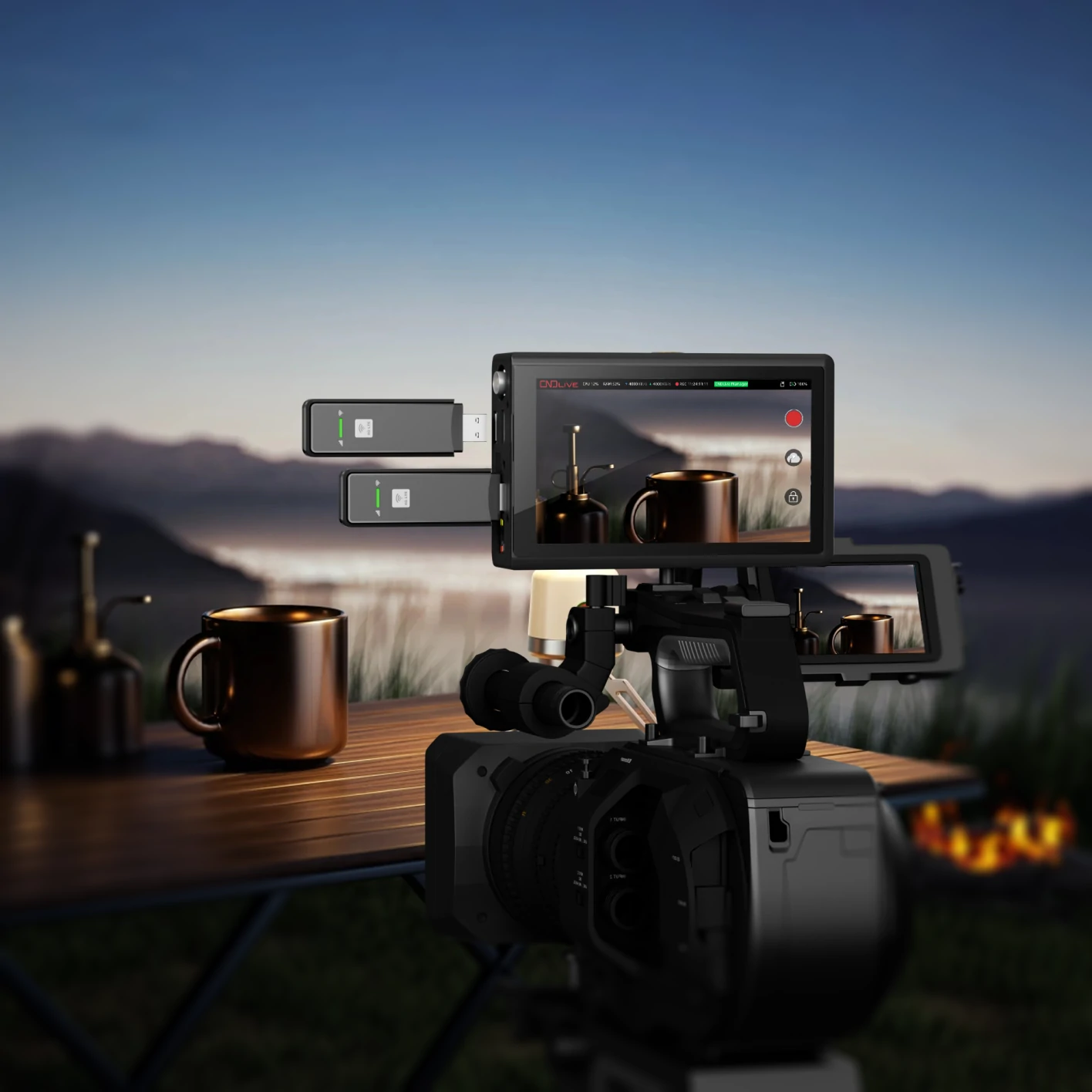

The E1000 mounts easily to a camera via the 1/4″ threaded screw. Its built‑in battery delivers 3–4 hours of runtime, or power it via an external power bank.
A professional cooling system keeps the E1000 performing reliably—even in high‑temperature environments.
